Rissinjektion

Horizontal sealing

The horizontal barrier (pressure injection) is a sealing system against capillary ascending moisture. Increasingly, cellar rooms are used as living space. Very often it becomes necessary to professionally seal humid walls in order to meet this high quality standards. In the case of voids they are pre-filled with cement paste. The aim of the horizontal barrier is to interrupt the capillaries in the building material and to reduce the content of moisture. The filling of voids and insertion of a horizontal barrier will be done by the same packer system.
Advantages
  • Stabilization of masonry within the injection area
  • Low need of injection liquid due to filling of voids
  • Less accessories necessary, e.g. low wear of drill and need of packer
  • Less working time per meter
Examples of application
  • Subsequent sealing in older buildings
  • Depending on the object and moisture penetration, various methods can be used
  • Preliminary investigations are essential as a basis for rehabilitation measures
  • Horizontal barriers have to be executed over the whole cross section of the structural element


Ranges of applications
  • Masonry with voids
  • Homogeneous brick masonry
  • Homogeneous brick masonry with low alkalinity and percentage of moisture > 80%

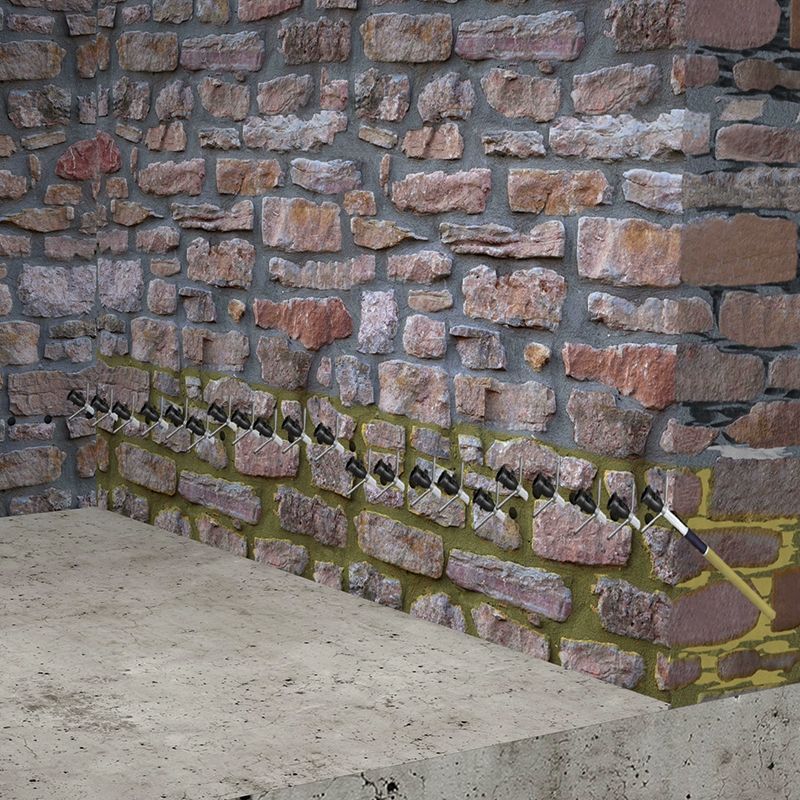

Injection method for masonry with cavities

Due to a multistage injection in a low-pressure process, cavities, defects and fissures are filled with a shrinkage-free injection mortar via bore packers. Using the same packers, a drill channel is created by a lance. The injection material is then injected by pressure injection (3-5 bar) for better distribution. In this way an optimal effectiveness in the area of the injected masonry can be achieved.

more about the products

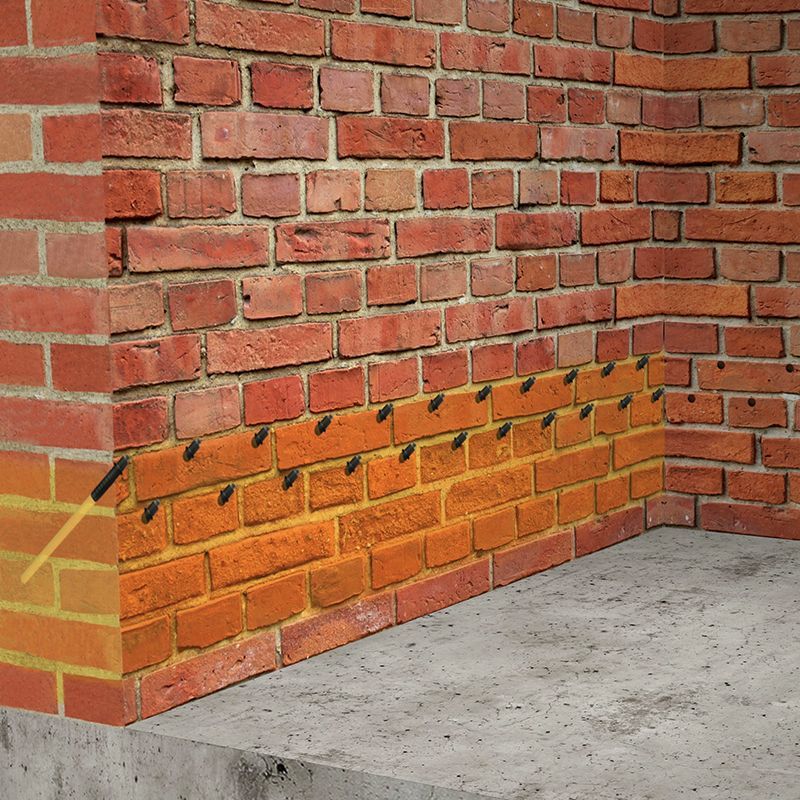

Injection method for homogeneous masonry

The selected injection material is injected into the component by means of continuous pressure (3-5 bar), which is adjusted to the component, via bore packers. It is important that the injection material is distributed relatively evenly in order to ensure that an effective zone is formed. The injection pressure should therefore be maintained over a longer period of time (e. g. several minutes per packer), depending on the component conditions.
