Borehole Seal

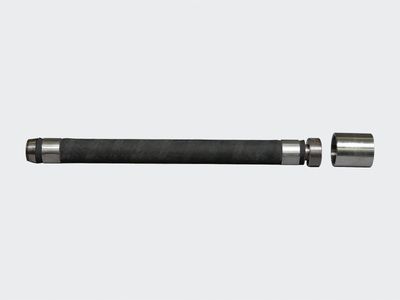

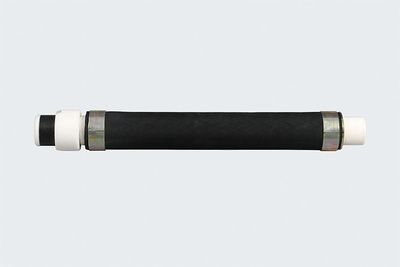

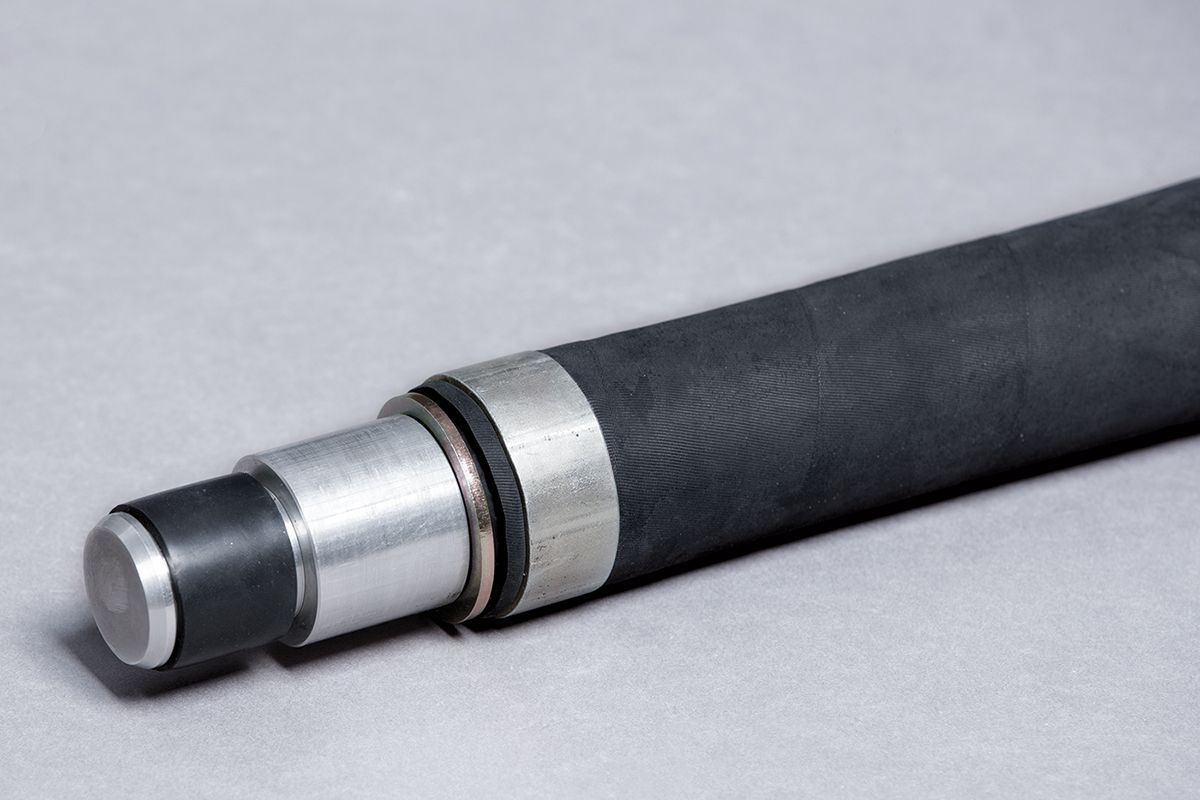

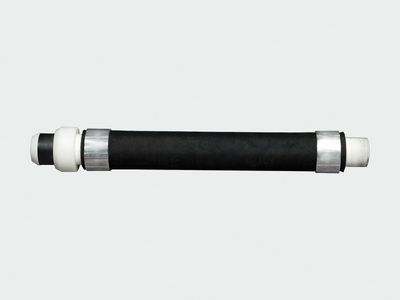

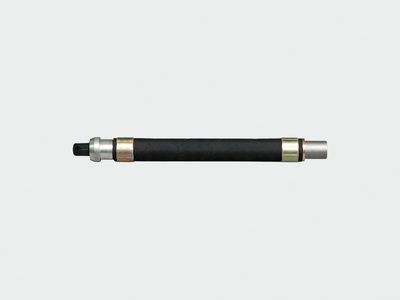

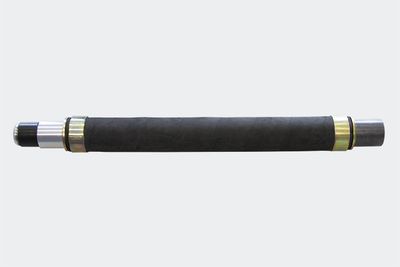

Borehole seals with internal polymer pipes are mainly used in mining and tunnelling to seal boreholes or for filling works. Materials as synthetic resins, mineral materials etc. are injected through the borehole seals for consolidation of the surrounding rock. The special feature of the polymer borehole seals is that they can be bored out easily if required.

Bodeninjektion mit Blaehpacker, Hydraulik, Bohrlochverschluss

Ground injection with
Inflatable packers, Hydraulic packers, Borhole seals

 open PDF

Examples of application

  • Consolidation of ground in different depths
  • Consolidation of unconsolidated material
  • Consolidation of fissured solid rock
  • Injections into structural elements
  • Injections into the soil below structural elements
  • Sealing works
  • Permanent sealing of boreholes
  • Lifting injections
  • Explorative drillings


  • Easy and safe sealing of boreholes
  • Large extension range of the inflation hose
  • Can be used in different depths
  • Can be bored out easily
  • Internal polymer pipes protect the mining tools from damage

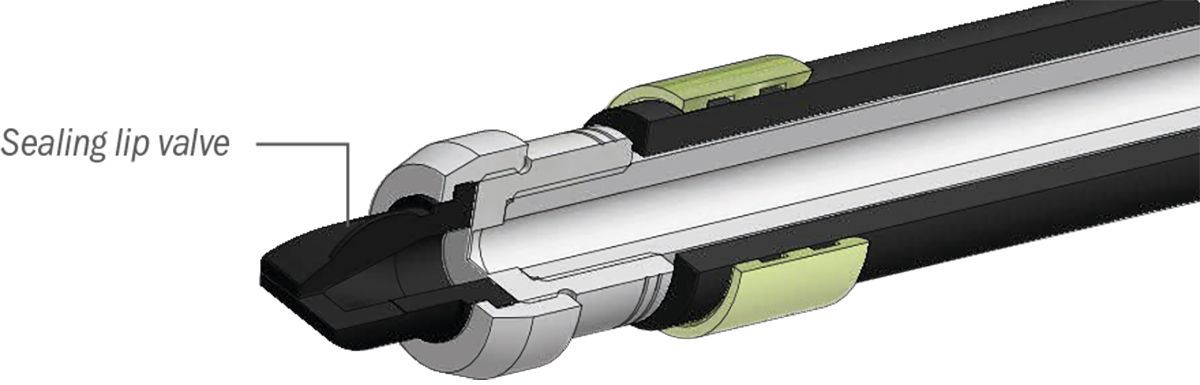

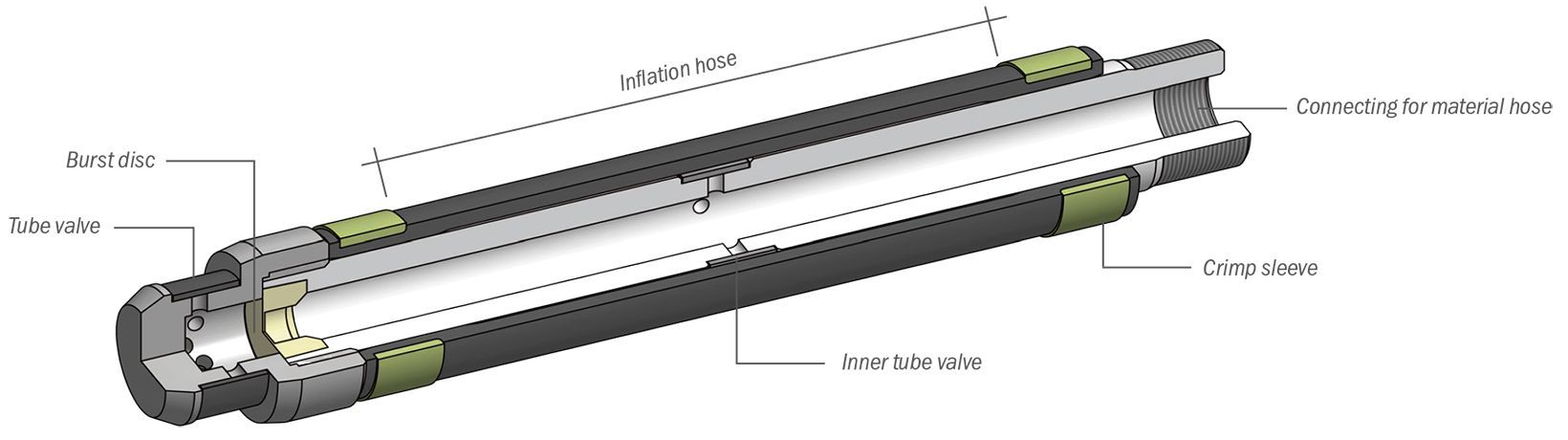

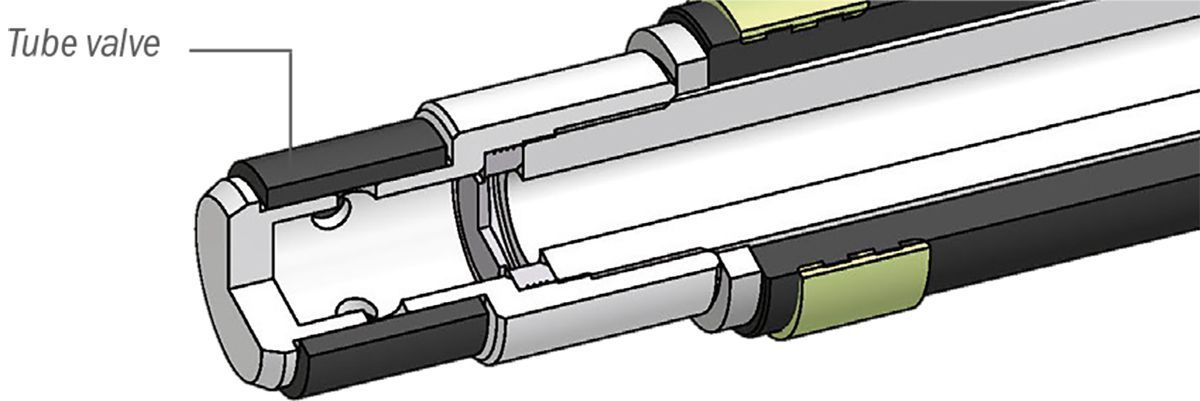

Due to pressurization of the borehole seal with the injection material, the inflation hose inflates and generates the sealing and clamping in the borehole. When the burst pressure is reached, the integrated burst disc explodes and releases the flow rate of the injection material. A tube valve in the drill hole closure prevents pressure drop in the inflation hose. The integrated tube valve (optional: check valve) stops the return flow of the filling material, so that the injection hose can be removed from the borehole seal directly after the injection. The use of polymer inner pipes prevents damage to the extraction tools when the borehole seals are cut.
