HYDRAULIC CYLINDER / TELESCOPIC CYLINDER

Manufacture
Production of hydraulic cylinders in accordance with customer requirements - including design if needed. All dimensions, pressure connections, mounts and seals can be configured just as the customer requires.

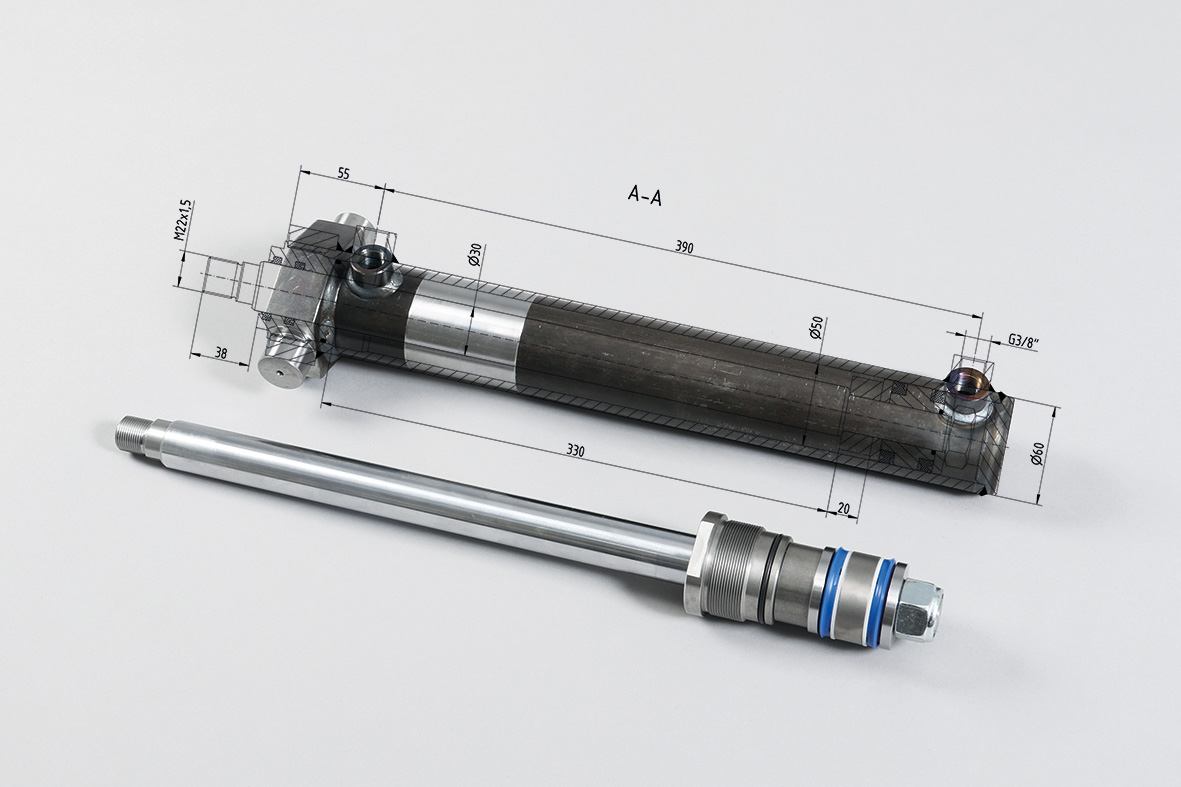

Rekonstruktion_Schwenkzylinder
Reparatur Schwenkzylinder
New production of hydraulic cylinders according to
  • agreement
  • customer drawing
  • special design in consultation with the customer
  • single or double acting
  • cylinder for higher temperature range e. g. in foundries
Production for various areas
  • industrial trucks
  • scissor lifts
  • construction machinery
  • mechanical engineering
  • forest vehicles
  • industrial plants such as rubber processing
  • sawmills
  • vehicles underground
  • mobile hydraulics




The hydraulic cylinders can be assembled individually, e. g. the

  • lifting force by selection of piston rod and cylinder tube diameter
  • stroke length
  • selection of seals
  • thread size of the connections
  • position of suspension to the connections
  • suspension design such as with welded-on pipe section incl. bearing, rod ends welded or screwed on, trunnion, thread, flange connection, end position cushioning
Repair
After analyzing the damage, our technicians will renew all the precision seals and replace only those parts which are defective. Since we keep a wide range of plunger rods and cylinder barrels in stock, repairs are generally possible in a very short time frame. All finished cylinders are rigorously tested on our inhouse test bench.

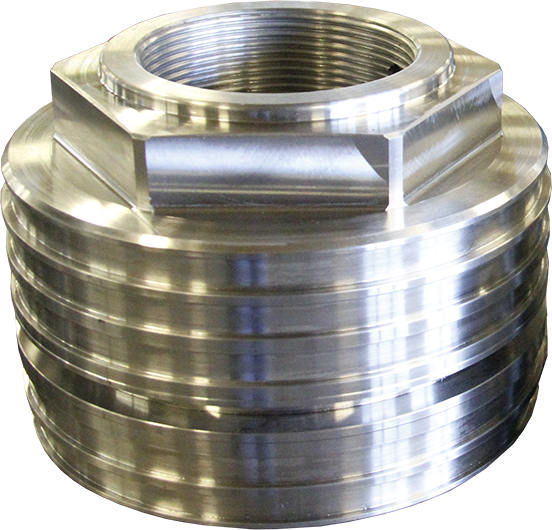

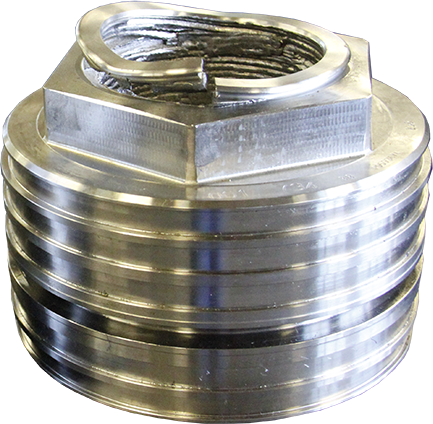

Hydraulic cylinder pistons

  • Remanufacture of broken pistons
  • Production in accordance with existing sample
Hydraulik-Zylinderkolben
Hydraulik-Zylinderkolben

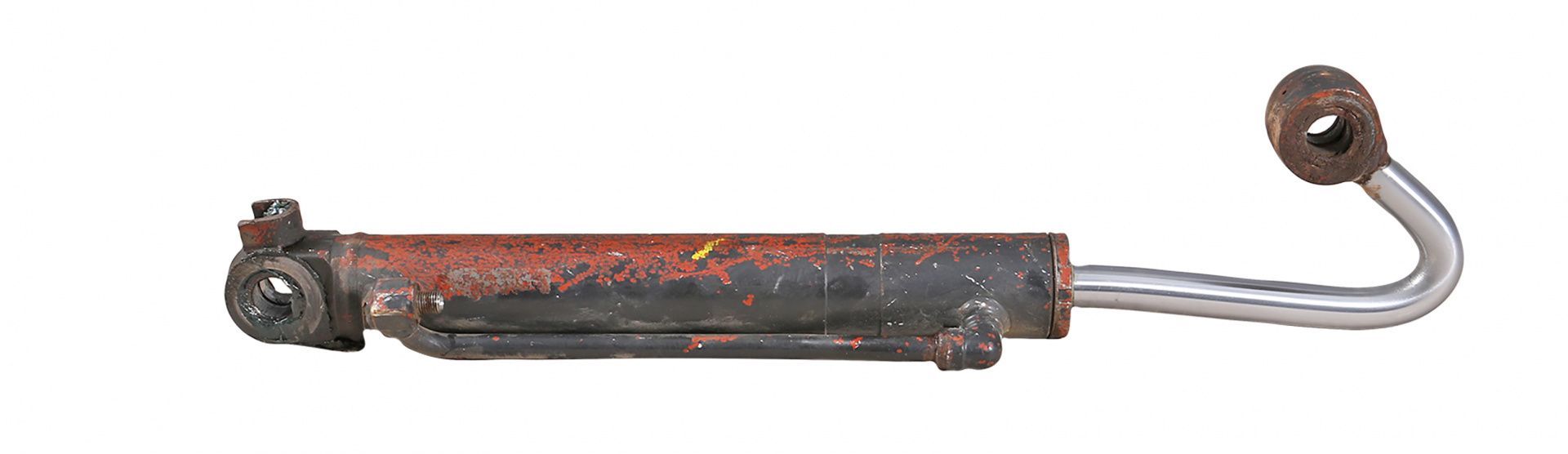

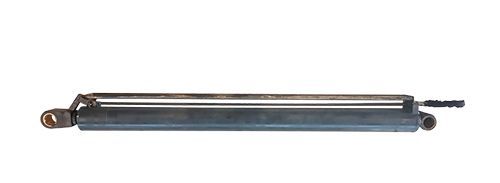

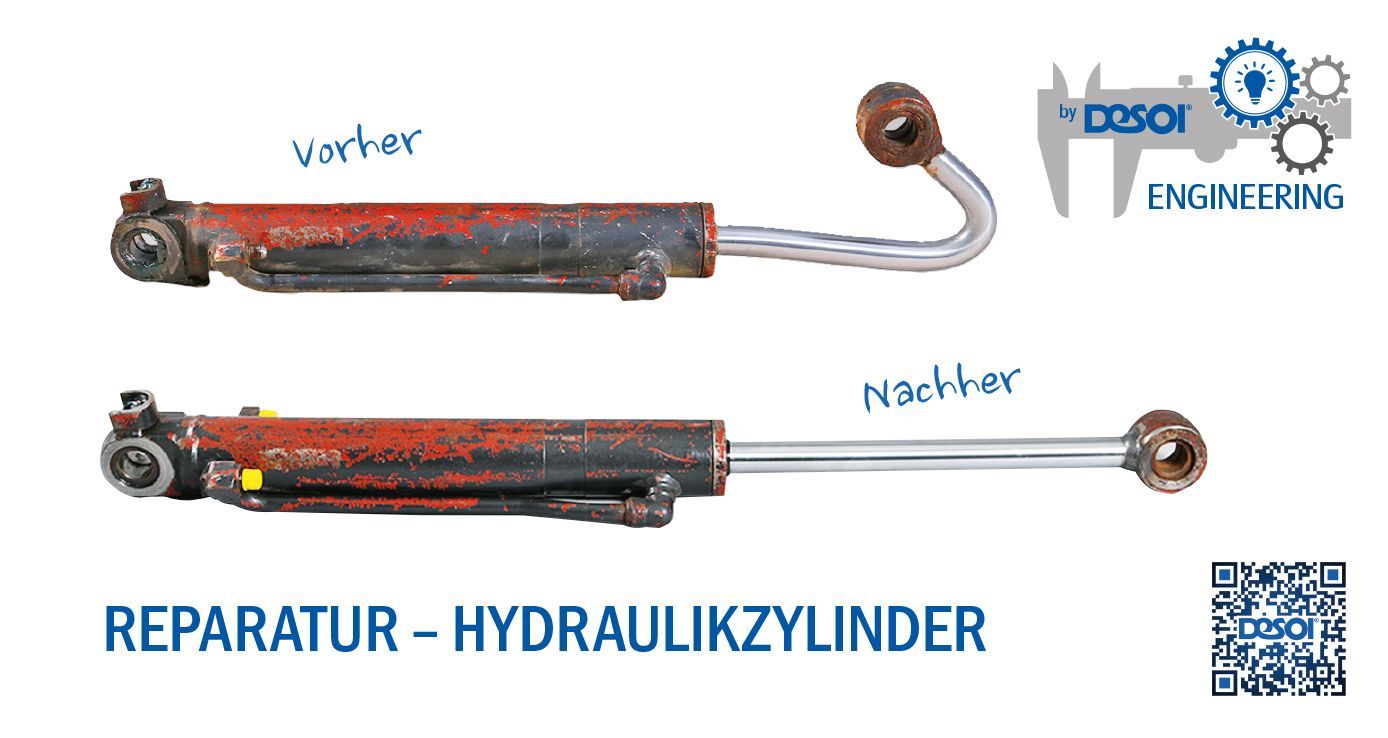

Bent piston rod

  • Hydraulic cylinder disassembled, cleaned and checked
  • Piston rod desined an reconstruced (piston rod head cut off and welded on again)
  • Cylinder mounted with new seals an hydraulically pressed off

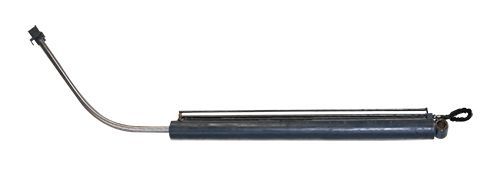

Hydraulik-Zylinder mit verbogener Kolbenstange

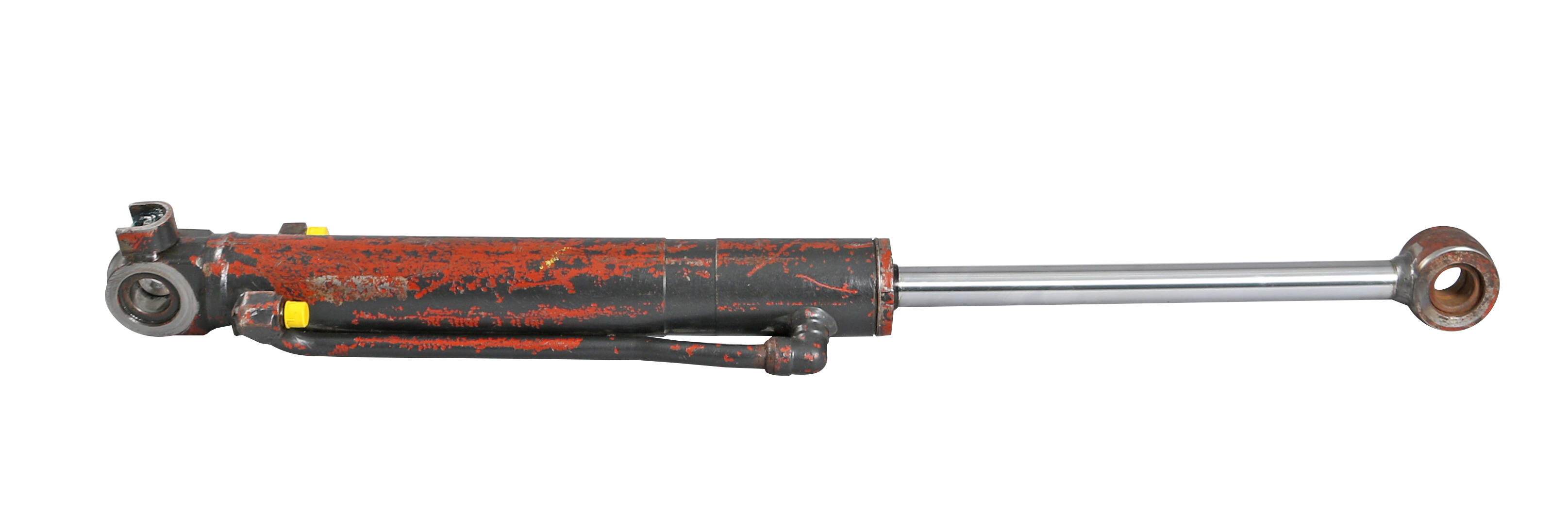

Kolbenstange nach Reparatur

BENT PISTON ROD

  • Hydraulic cylinder disassembled, cleaned and checked
  • Piston rod desined an reconstruced (piston rod head cut off and welded on again)
  • Cylinder mounted with new seals an hydraulically pressed off

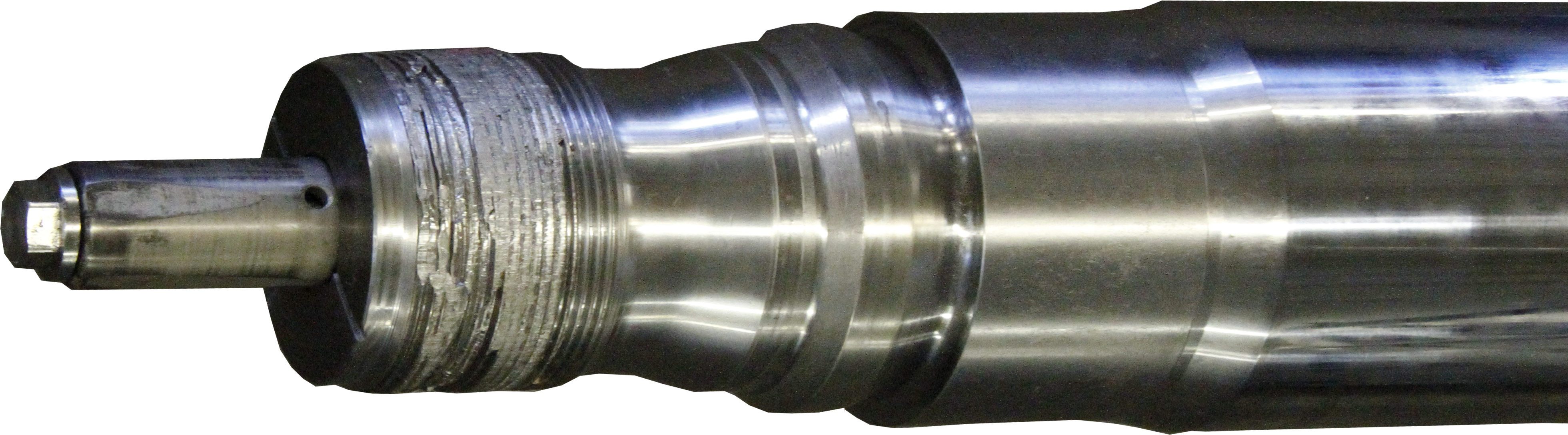

Piston rod with eye

  • Hydraulic cylinder disassembled, cleaned and checked
  • Piston rod desined an reconstruced (piston rod head cut off and welded on again)
  • Cylinder mounted with new seals an hydraulically pressed off
Reparatur Kolbenstange mit Auge

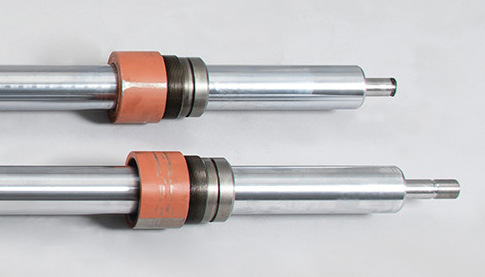

Kolbenstange defektes Gewinde ersetzt

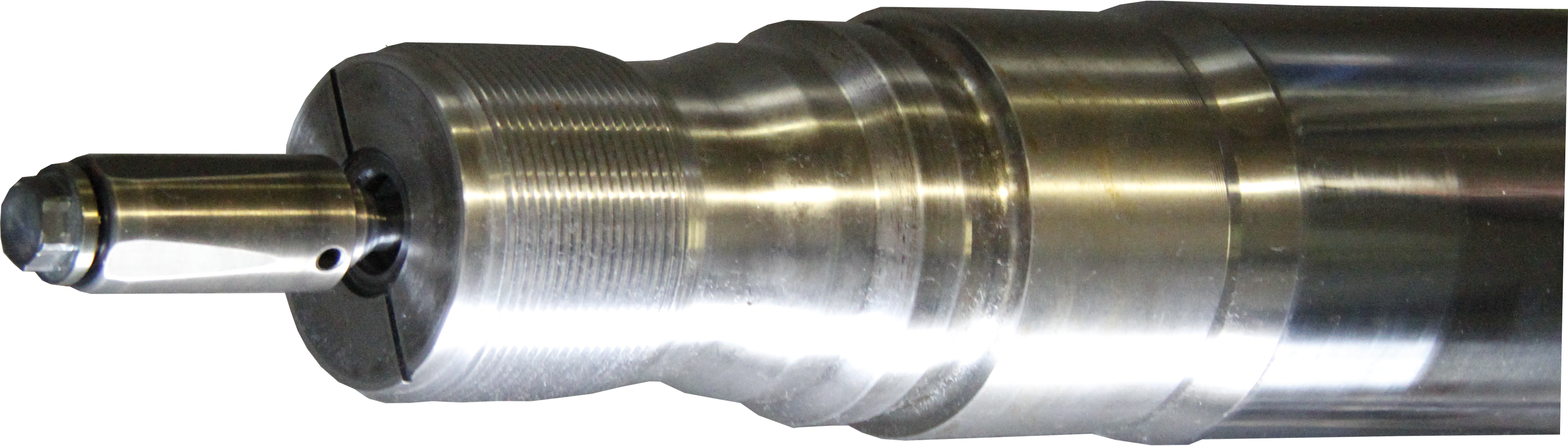

Piston rods

  • Defective mount re-welded and turned to specification
  • Length up to approx. 2800 mm
Kolbenstange
Kolbenstange

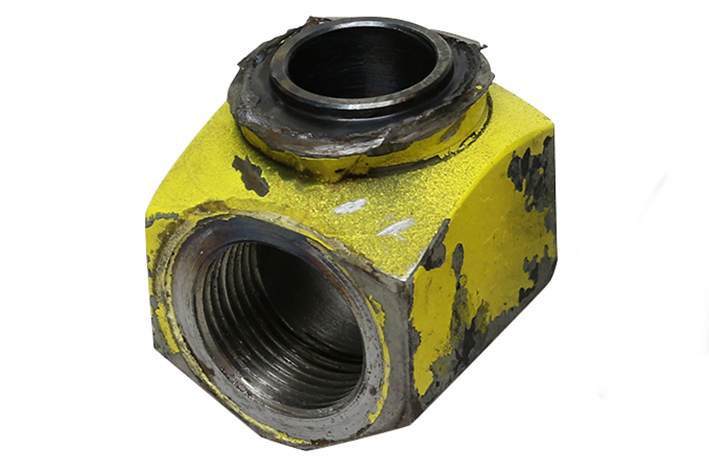

Line connection for welding on hydraulic cylinder

  • Reconstruction of defective connection
  • Production according to sample
Leitungsanschluss zum Anschweißen an Hydraulikzylinder

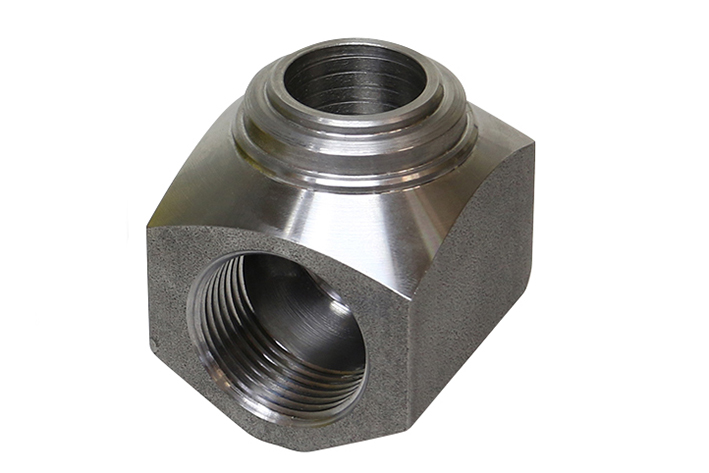

Sonder Gewindeanschluss
